Camera Kit: Gemineye, 7.0" LCD monitor & Components

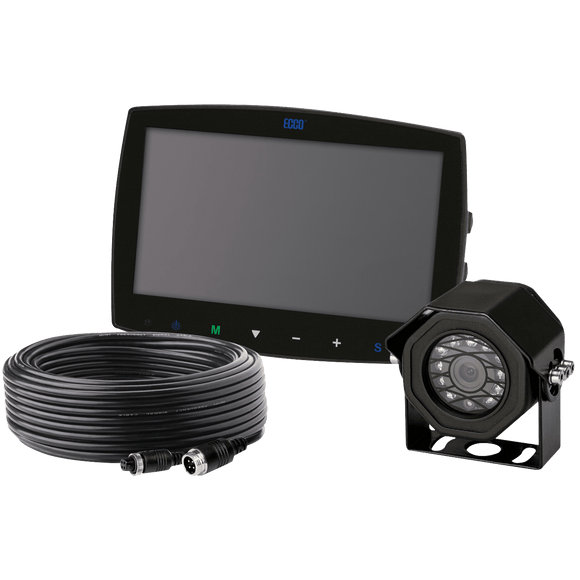

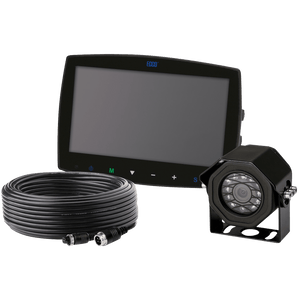

Ecco EC7000-QK Gemineye™ 7” Quad View LCD Color System

The 7” LCD high-resolution color monitor included with this system features split screen, quad view capability. Excellent picture quality is assured even in low-light conditions using ECCO’s standard color infrared camera. The flat, widescreen monitor allows unobtrusive mounting with a large, easily viewable screen area, expandable up to 4 cameras.  (includes EC7000-QM, EC2014-C, & ECTC20-4)

Features & Benefits

• Quad view, split screen
• CMOS 11 LED infrared camera
• Four camera expandable Integrated ultrasonic proximity sensors

EC7000-QM                                                 EC2014-C

Internal controller:  Yes                               Color:  Yes

Color:  Yes                                                   Power Consumption (W): 3.0

Voltage:  12-24                                            Microphone: Yes

Power consumption (W):  6.4                      Day / night light sensor:  Yes

Audio: Yes                                                    Dimensions: 2.87” x 2.99” x 2.60”

Day / night light sensor:  Yes                       Weight: 0.74 lbs.

Dimensions:  8.4” x 6” x 2.8”                        Temperature (Fº):   -22 to +158

Weight:  1.8 lbs.                                           Lens size: 1/3”

Temperature (Fº):  -4 to +158                      Lens angle: 120°

Screen size:  7.0”                                          Infrared LEDs: 11

Mirror Image: Yes                                         4 pin camera connection: Yes

Remote control: Yes

Quad View: Yes

Sunshade: Yes

Max cameras: 4

4 pin camera connection: Yes
