Camera Kit: Gemineye, 7.0" LCD, color, 4 pin, expandable up to 3 cameras, 12-24VDC (includes EC7003-M, EC2014-C & ECTC20-4)

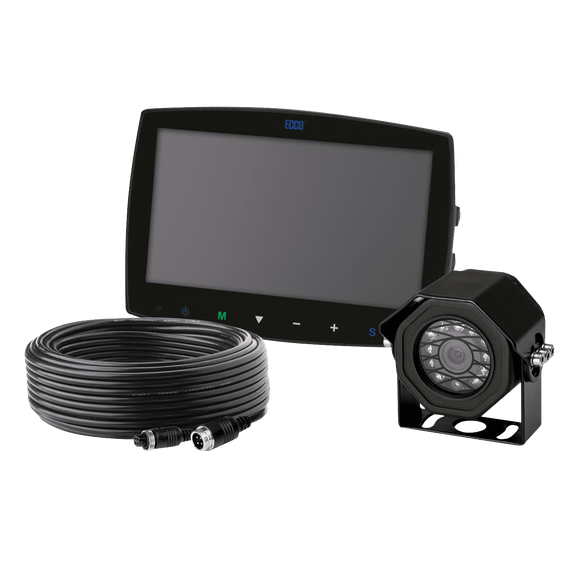

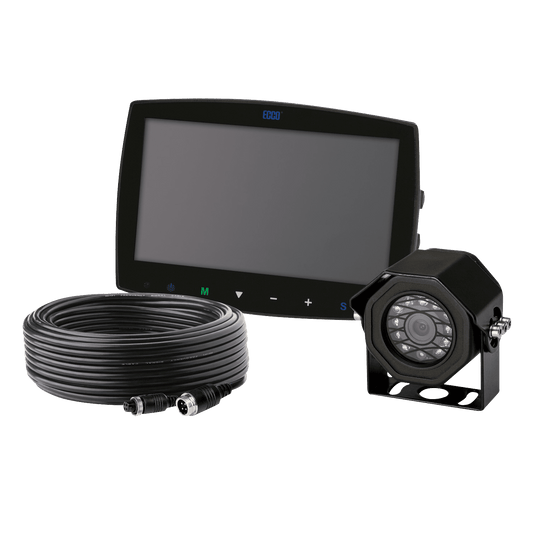

Ecco EC7003-K Gemineye™ 7” LCD Color System

The 7” LCD high-resolution touchscreen color monitor included with this system provides the optimal viewing area for mobile CCTV applications. Excellent picture quality is assured even in low-light conditions using ECCO’s CMOS color infrared camera. The flat, widescreen monitor allows unobtrusive mounting with a large, easily viewable screen area, expandable up to 3 cameras. (includes EC7003-M, EC2014-C & ECTC20-4)

Features & Benefits

• Touchscreen menu control
•  CMOS 11 LED infrared camera
•  Includes monitor sunshade
•  Three camera expandable

EC7003-M                                                    EC2014-C

Internal controller:  Yes                               Color:  Yes

Color:  Yes                                                   Power Consumption (W): 3.0

Voltage:  12-24                                           Microphone: Yes

Power consumption (W):  6.0                     Day / night light sensor:  Yes

Audio: Yes                                                   Dimensions: 2.87” x 2.99” x 2.60”

Day / night light sensor:  Yes                      Weight: 0.74 lbs.

Dimensions:  8.4” x 6” x 2.8”                       Temperature (Fº):   -22 to +158

Weight:  1.8 lbs.                                           Lens size: 1/3”

Temperature (Fº):  -4 to +158                      Lens angle: 120°

Screen size:  7.0”                                          Infrared LEDs: 11

Mirror Image: Yes                                         4 pin camera connection: Yes

Remote control: Yes

Quad View: Yes

Sunshade: Yes

Max cameras: 4

4 pin camera connection: Yes
