Camera Kit: EC5603-K Gemineye, 5.6" LCD, color, 4 pin, expandable up to 3 cameras, 12-24VDC

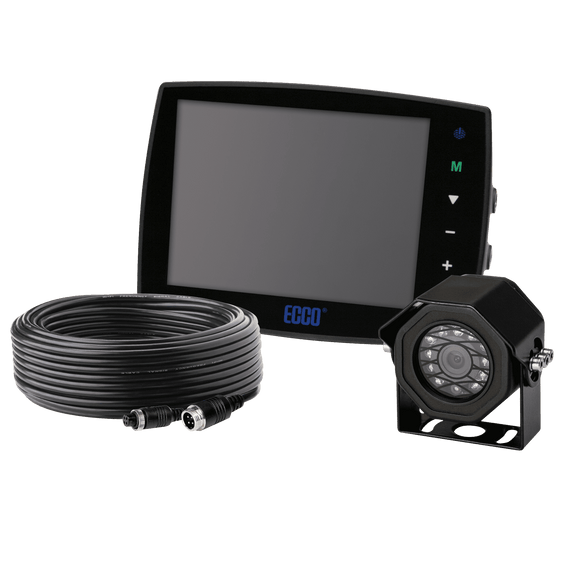

Ecco EC5603-K Gemineye™ 5.6” LCD Color System

Comprising a feature-packed 5.6” LCD high resolution touch screen color monitor and CMOS color infrared camera, the EC5603-K delivers excellent picture quality even in lowlight conditions. The compact monitor allows for unobtrusive installation without compromising viewable screen area. System is expandable up to 3 cameras. (includes EC5603-M & EC2014-C)

Features & Benefits

• Touchscreen menu control
• CMOS 11 LED infrared camera
• Includes monitor sunshade
• Three camera expandable

EC5603-M                                                      EC2014-C

Internal controller:  Yes                               Color:  Yes

Color:  Yes                                                   Power Consumption (W): 3.0

Voltage:  12-24                                            Microphone: Yes

Power consumption (W):  5.0                      Day / night light sensor:  Yes

Audio: Yes                                                    Dimensions: 2.87” x 2.99” x 2.60”

Day / night light sensor:  Yes                       Weight: 0.74 lbs.

Dimensions:  5.2” x 3.5” x 0.8”                     Temperature (Fº):   -22 to +158

Weight:   0.8 lbs.                                          Lens size: 1/3”

Temperature (Fº):  -4 to +150                      Lens angle: 120°

Screen size:  5.0”                                          Infrared LEDs: 11

Mirror Image: Yes                                         4 pin camera connection: Yes

Remote control: Yes

Sunshade: Yes

Max cameras: 3

4 pin camera connection: Yes
