Concealed LED: Hide-A-LED, plug-in (4 LED), 12VDC
Ecco 9031A
Ecco Concealed LED: Hide-A-LED, plug-in (4 LED), 12VDC Product # 9031A
DIRECTIONAL LEDS 9031 Hide-A-LED‚Ñ¢ Concealed Warning

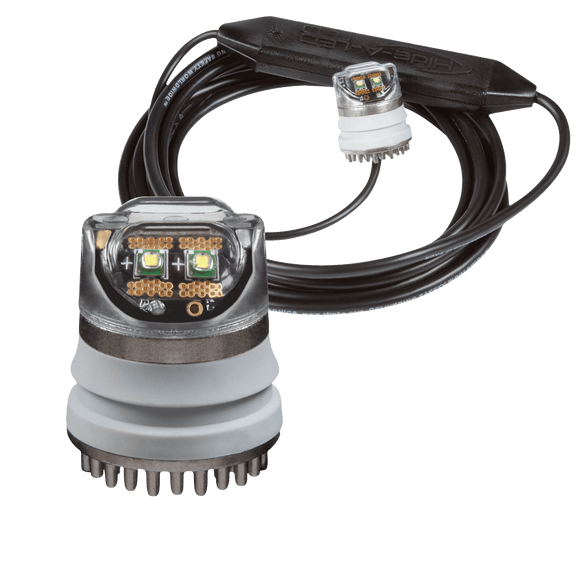

The 9031 series is a high-intensity directional LED warning light specifically designed for vehicle headlight and tail-light applications. The optic design produces wide angle light dispersion and maximizes secondary light output reflected off the vehicle light casing. In addition, the LEDs’ low profile allows mounting in small, confined light casings typical of tail lights and modern vehicle headlights. The LED design offers major advantages over strobe versions. All control electronics are situated in a sealed, in-line driver module so no remote power supply is required. 16 flash patterns are included and multiple units can be synchronized to flash alternately or simultaneously. Additional benefits of LED technology include high intensity light output, low current draw and a long and maintenance-free service life.
Models
PART NO. TYPE ILLUMINATION COLOR OPTIONS
9031A 4 LED, 1 Head Amber
9031C 4 LED, 1 Head Clear
Design Features
- 12-24 VDC, 0.5 Amps
- 1” hole mount
- Four 1-watt high-intensity LEDs per head provide exceptional warning
- Wide-angle light dispersion maximizes light casing reflection
- 16 flash patterns including single, double, triple, quad, deci and cycle all
- Multiple heads are synchronizable (simultaneous or alternating operation)
- Colorless when not illuminated
- In-line waterproof driver module eliminates the need for a remote power supply
- UV stabilized polycarbonate lens, nickel plated housing and 9’ cable
