Concealed LED: Hide-A-LED, (6 LED), headlight/surface mountable,12-24VDC, 16 flash patterns, amber

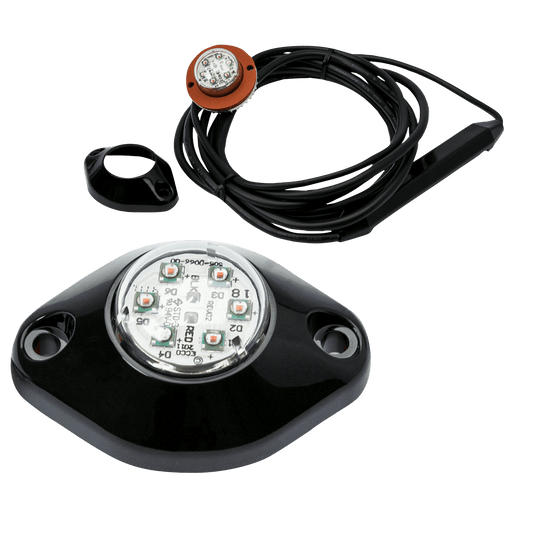

Ecco 9014A: DIRECTIONAL LEDS 9014 Hide-A-LED™ In-Headlight Flange or Surface Mount LEDs

The 9014 is a high intensity directional LED warning light specifically designed for vehicle headlight and tail light applications. In addition, the 9014 can also be surface mounted to the vehicle exterior using the included mounting bezel. It features six LEDs that provide exceptional warning with a sealed in-line driver module eliminates the need for a remote power supply. All 16 flash patterns are synchronizable with other Hide-A-LEDs and the 3510. Additional benefits of LED technology include low current draw and a long maintenance-free service life.

Model

PART NO.              TYPE                                              ILLUMINATION COLOR OPTIONS

9014X                    6 LED, 1 Head                                 Amber/Blue/Clear/Red

Note: Replace “X” in part number with desired color: A=amber, B=blue, C=clear, R=red

Features and Benefits

• 12-24 VDC, 0.9 Amps
• Six 1-watt high-intensity LEDs provide exceptional warning
• Head/tail light or surface mountable using included bezel
• 16 flash patterns including single, double, triple, quad, deci and cycle all
• Multiple heads are synchronizable (simultaneous or alternating operation)
• Colorless when not illuminated
• In-line waterproof driver module eliminates need for a remote power supply
• UV stabilized polycarbonate lens, nickel-plated housing and 9’ cable
