Concealed LED: Hide-A-LED (6 LED), 12-24VDC
Ecco 9013AEcco Concealed LED: Hide-A-LED (6 LED), 12-24VDC Product # 9013A

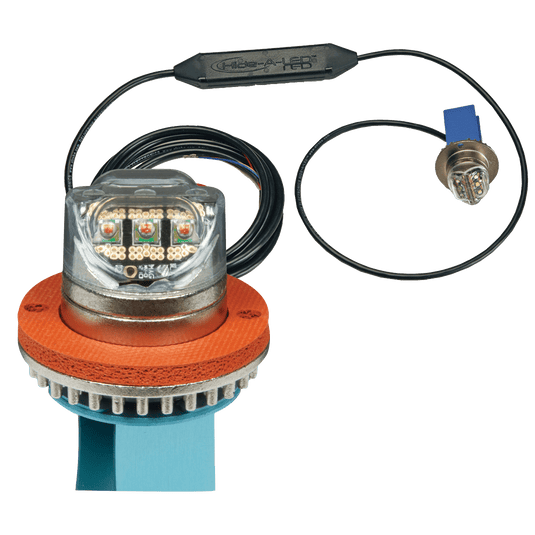

9013 Hide-A-LED™ Concealed Warning LEDs
Similar to the 9011 series unit, the 9013 features two additional LEDs providing high intensity light output. The Hide-A-LED low profile allows for mounting in small, confined light casings typical of newer model vehicle headlights and tail lights. A sealed in-line driver module eliminates the need for a remote power supply. The 9013 also features 16 flash patterns and synchronization capability with other Hide-A-LEDs and the 3510.
Model
PART NO. TYPE ILLUMINATION COLOR OPTIONS
9013A 1” hole mount Amber
9013C 1” hole mount Clear
Design Features
- 12-24 VDC, 1.25 Amps
- Six high-intensity LEDs provide exceptional warning
- 16 flash patterns including single, double, triple, quad, deci and cycle all
- Multiple heads are synchronizable (simultaneous or alternating operation)
- Colorless when not illuminated
- In-line waterproof driver module eliminates need for a remote power supply
- UV stabilized polycarbonate lens, nickel-plated housing and 9’ cable
