Concealed LED: Hide-A-LED, 2 head, plug-in (4 LED), 12-24VDC

Concealed LED: Hide-A-LED, 2 head, plug-in (4 LED), 12-24VDC

Ecco 9022AA

Ecco

  • $353.69
All Pricing in CAD. All Products Ship From Canada

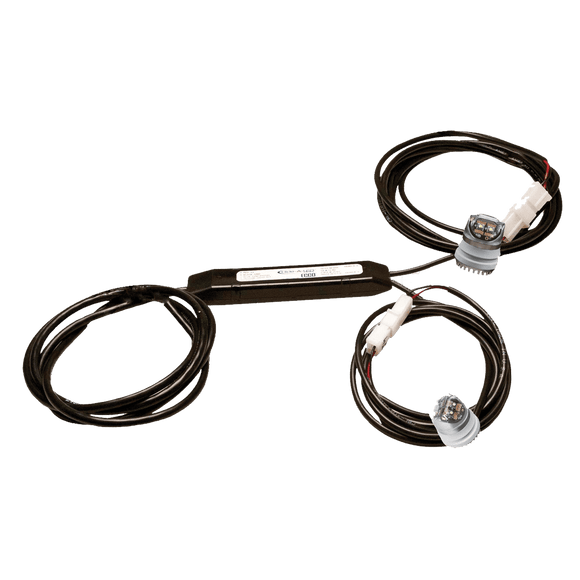

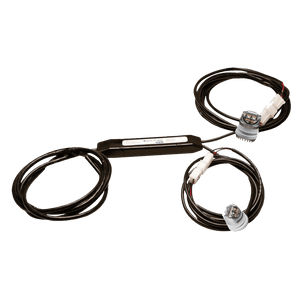

Ecco 9022AA/9022CC: DIRECTIONAL LEDS 9021 Hide-A-LED™ Concealed Warning

The high-intensity directional LED warning light specifically designed for vehicle headlight and tail-light applications. The optic design produces wide angle light dispersion and maximizes secondary light output reflected off the vehicle light casing. In addition, the LEDs’ low profile allows mounting in small, confined light casings typical of tail lights and modern vehicle headlights. The LED design offers major advantages over strobe versions. All control electronics are situated in a sealed, in-line driver module so no remote power supply is required. 16 flash patterns are included and multiple units can be synchronized to flash alternately or simultaneously. Additional benefits of LED technology include high intensity light output, low current draw and a long and maintenance-free service life.

Models

PART NO.                TYPE                                 ILLUMINATION COLOR OPTIONS

9022AA                 4 LED, 2 Head                     Amber, Amber

9022CC                 4 LED, 2 Head                     Clear, Clear

Design Features

  • 12-24 VDC, 0.5 Amps
  • 1” hole mount
  • Four 1-watt high-intensity LEDs per head provide exceptional warning
  • Wide-angle light dispersion maximizes light casing reflection
  • 16 flash patterns including single, double, triple, quad, deci and cycle all
  • Multiple heads are synchronizable (simultaneous or alternating operation)
  • Colorless when not illuminated
  • In-line waterproof driver module eliminates the need for a remote power supply
  • UV stabilized polycarbonate lens, nickel plated housing and 9’ cable
