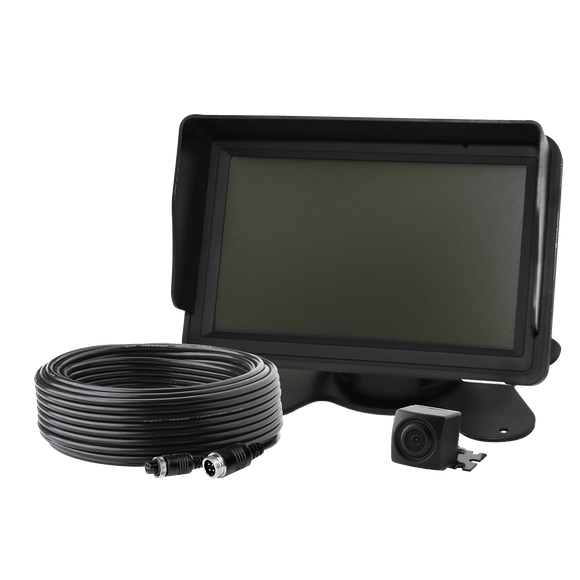

Camera Kit: Gemineye, 5.0" LCD, color, 4 pin, expandable up to 3 cameras, 12-24VDC (includes EC5000B-M, EC2020-C & ECTC20-4)

Ecco EC5000B-K Gemineye™ 5” LCD Color System

Comprising a feature-packed 5” LCD high resolution screen color monitor and color camera, the EC5000B-K delivers excellent picture quality. The compact monitor allows for unobtrusive installation without compromising viewable screen area. System is expandable up to 3 cameras. (includes EC5000B-M & EC2020-C )

Features & Benefits

• Non-commercial applications
• Camera offers 170º view
• Includes monitor sunshade
• Three camera expandable

EC5000B-M                                                  EC2020-C

Internal controller:  Yes                                 Color:  Yes

Color:  Yes                                                    Power Consumption (W):  2.0

Voltage:  12-24                                             Dimensions: 0.9” x 0.9” x 0.9”

Power consumption (W):  2.6                       Weight: 0.11 lbs.

Day / night light sensor:  No                        Temperature (Fº):   -22 to +158

Dimensions:  5.2” x 3.5” x 0.8”                      Lens size: 3/5”

Weight:   0.8 lbs.                                           Lens angle: 170°

Temperature (Fº):  -4 to +150                       4 pin camera connection: Yes

Screen size:  5.0”

Remote control: Yes

Sunshade: Yes

Max cameras: 3

4 pin camera connection: Yes
