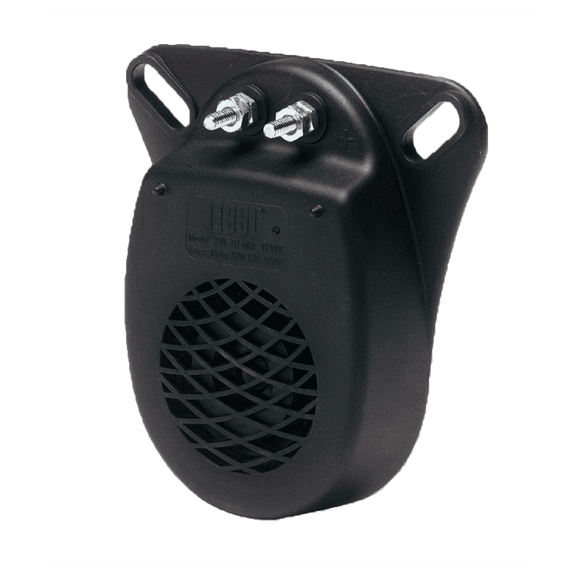

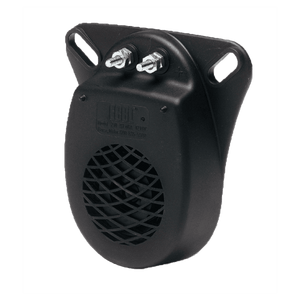

ECCO’s surface-mount alarm provides a low-profile warning alarm specifically designed to offer a wide range of mounting options, particularly where space is limited. The reinforced nylon housing provides rugged durability and the epoxy-encapsulated circuit board protects all elements from vibration and moisture. ECCO’s unique grill design meets the requirements of SAE J994 for high-pressure washing.
Model
PART NO. VOLTAGE dB(A) AMPS
210 12 97 0.1
Features and Benefits
-
Designed for mounting in areas where a compact profile is required
-
Universal mounting bracket covers a wide range of popular mounting applications
Alarm Specifications
- Connection: 18-32 uni stud connection Fiberglass reinforced nylon housing
- Recommended mounting bolt: 5/16” Grade 5
- Recommended washer: 5/16” Type A, Series N or W
-
Recommended mounting torque: 156 in. lbs.
