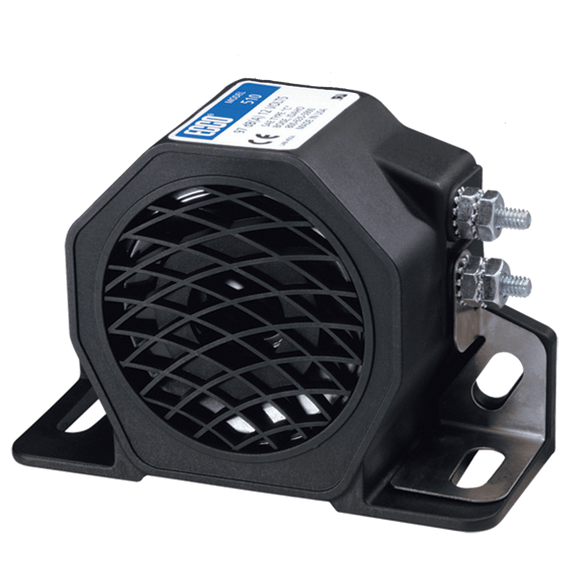

ECCO’s most compact and popular line of back-up alarms, the 500 Series provides a cost-effective warning solution with ECCO quality, reliability and SAE certifications. A glass-filled nylon housing with epoxy-encapsulated electronics provide exceptional durability and protection against moisture, dust and vibration.
Model:
PART NO. TYPE CERTIFICATIONS
585 - SAE TYPE C, CE, R10, UL, AMECA
VOLTAGE dB AMPS
12-48 97 0.1
Features and Benefits
-
Compact size and universal mounting bracket maximizes location options
-
Self grounding (except 575)
-
Sealed in epoxy for protection against dust, moisture, and vibration
-
Temperature Range: -40°F to +185°F (-40°C to +85°C)
Alarm Specification
Connection: 8-32 uni stud connection
Fiberglass reinforced nylon housing
Recommended mounting bolt: 1/4” Grade 5
Recommended washer: 1/4” Type A, Series N or W
Recommended mounting torque: 76 in. lbs.
