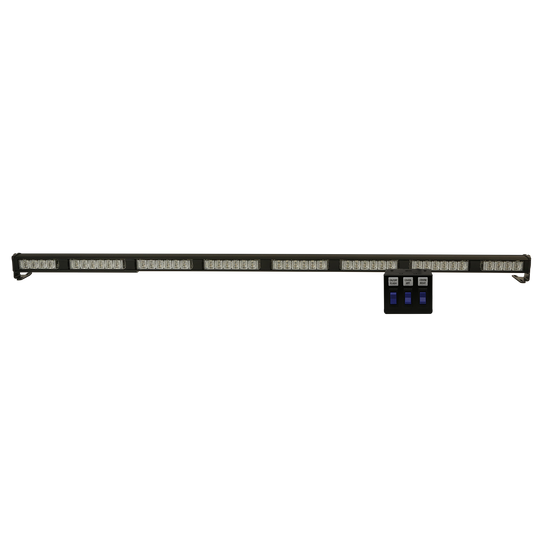

High output directional warning with the added benefits of low amp draw, maintenance free, and long-life LED light source. Features 32 flash patterns selectable via in-cab rocker switch panel.
Models
PART NO. BAR LENGTH CABLE LENGTH ILLUMINATION COLOR
37048AS 46.1” | 1171mm 15’ | 4.6m A
Design Features
- 12-24VDC,4.0Amps
- 32 user-selected flash patterns signal traffic to avoid hazards
- Comprises eight 3703 LED modules (37038AS) or six 3705 and two 3704 LED modules (37048AS)
- Includes signal bar, in-cab rocker switch panel, and cable • 15’ cable
- Temperature Range: -22°F to +122°F (-30°C to +50°C
SPECIFICATIONS
| COLOR | AMBER |
| MOUNT | MULTI-MOUNT |
| FLASH PATTERN | 32 |
| APPROVAL | SAE CLASS I |
| HEIGHT | 1.6 |
| LENGTH / WIDTH | 46.1 |
| DEPTH | 1.9 |
| WARRANTY | 5 YEAR |
| VOLTAGE | 12-24 V |
| AMPS | 4 |
